Hornet 19-2627 Build Log

Friday 7th January 2022

Fuel calibration conducted today

View on Tumblr

Wednesday 5th January 2022

Weight and balance conducted today

View on Tumblr

Thursday 16th December 2021

Replaced passenger front window today after a fuel spill on the original.

View on Tumblr

Sunday 12th December 2021

Installed the 3 doors

View on Tumblr

Thursday 9th December 2021

Installed the elevator trim motor today and tested. Installed tail feather end caps.

View on Tumblr

Saturday 4th December 2021

Completed the fuel plumbing into the header tank from wings.

View on Tumblr

Saturday 4th December 2021

Wiring up the landing and strobes today.

View on Tumblr

Sunday 21st November 2021

Installed the wings, tailplane and control surfaces today

View on Tumblr

Wednesday 17th November 2021

Starting to receive aircraft parts back from the painter. Super impressed with the finish.

View on Tumblr

Tuesday 9th November 2021

The painting has started

View on Tumblr

Sunday 31st October 2021

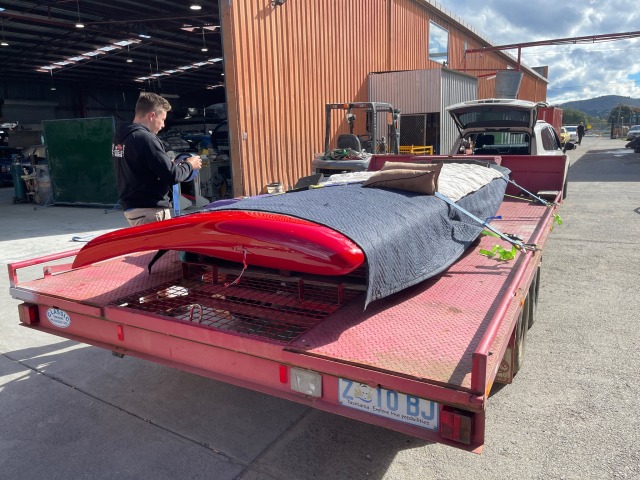

Getting ready to send the aircraft to the paint shop

View on Tumblr

Sunday 26th September 2021

Installing flap fences while being supervised by Jett

View on Tumblr

Saturday 25th September 2021

Today working on the Jury Struts and inspection cover plates

View on Tumblr

Thursday 23rd September 2021

Continuing with rigging today along with the install of elevator trim servo.

View on Tumblr

Tuesday 21st September 2021

Continuing with wing rigging and flap setup.

View on Tumblr

Wings On

Saturday 18th September 2021

Mounted the 2 wings on the aircraft today. Took all day to make sure and the angles and numbers were perfect.

View on Tumblr

Picked up the 2nd Wing

Tuesday 7th September 2021

Picked up the 2nd wing today from Dad

View on Tumblr

Elevator Trim Servo Wired

Saturday 4th September 2021

Decided to remove the manual elevator trim system and replace with electric ray allen servo controlled by the MGL SP10. Works well.

View on Tumblr

Port Wing Tip Fitted

Monday 30th August 2021

Port wing wing tip on, nearly complete

View on Tumblr

I fit, lets go

Monday 16th August 2021

Just checking for size

View on Tumblr

Cabin Roof Windows

Sunday 15th August 2021

Cabin Top windows fitted

View on Tumblr

AOA Static Lines

Friday 13th August 2021

AOA static lines in

View on Tumblr

Port Wing Bottom Skin Fitting

Sunday 8th August 2021

Port wing bottom skins going on

View on Tumblr

Port Wing Top Skins

Sunday 1st August 2021

Top skins going on 2nd wing

View on Tumblr

Thursday 29th July 2021

Wiring Tidy - Rear Window In

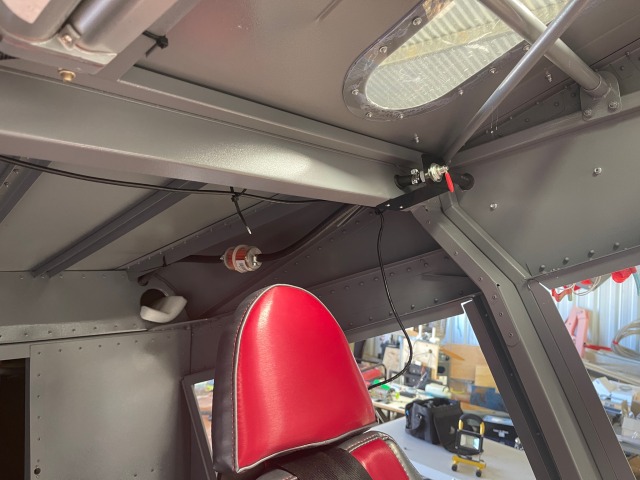

Completed the majority of the outstanding wiring today in the avionics bay and up to the baggage area ceiling. Installed rear baggage window. Cut out remaining internal cockpit floor covers.

View on Tumblr

Port Wing lower skin fitting

Wednesday 21st July 2021

Starting to install the bottom skins on the 2nd wing today.

View on Tumblr

Tail Feathers Fairings

Friday 16th July 2021

Today we worked on the fairings around the vertical and horizontal stabilizers

View on Tumblr

Fuel Tank In - Port Wing

Thursday 1st July 2021

Fuel tank in.

View on Tumblr

Port Wing Primed

Wednesday 30th June 2021

Port wing primed

View on Tumblr

Port Wing

Monday 28th June 2021

Today we started the port wing

View on Tumblr

Tail Feathers on and seats arrived

Saturday 26th June 2021

Over the last 4 days Dad and I install the tailplane, elevator, vertical fin and rudder. We also received the seats back from upholstery .

View on Tumblr

Wrapping the nose skin & Internal Wiring

Wednesday 16th June 2021

Evenly pulling the nose skin around


Fuel line securely double clamped to fuel outlet.


Fuel and vent tubes plumbed.


Positioning Wingtip Strobes

View on Tumblr

Wing Skinning Started

Wednesday 16th June 2021

Skinning Top and Bottom wing surfaces

Fuel Tank pressure tested and mounted.

View on Tumblr

Starting Wing Assembly

Wednesday 16th June 2021

Work has started on framing up the starboard wing.

View on Tumblr

Inboard Wing & Fuel Fence

Sunday 6th June 2021

Fuel Fence & fuel cap cover in place

View on Tumblr

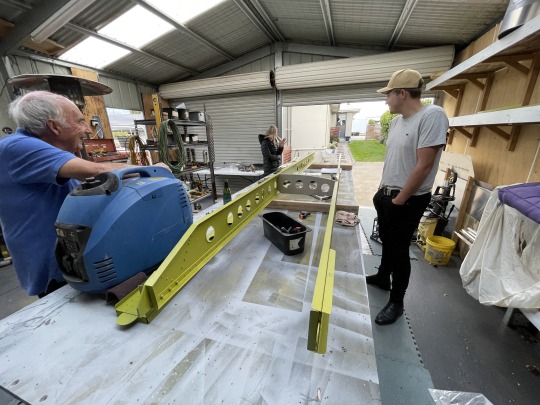

Starting the wings - Right first

Friday 9th April 2021

With the help of David Campbell, Dad has started the right wing.  Looking good after just 2 days.

View on Tumblr

Tailplane

Monday 8th March 2021

Elevator is done, now the tailplane

View on Tumblr

Elevator Construction

Saturday 27th February 2021

Fuselage is out of Dads shed, now we start work on the elevator.

View on Tumblr

Relocation of Fuselage

Tuesday 23rd February 2021

Today we loaded the fuselage on a trailer and relocated it down to my hangar at Sandfly to continue the build.

View on Tumblr

Front Windscreens In

Monday 22nd February 2021

We fitted the front windscreens today.  Went in easier then expected.

View on Tumblr

Interior Painting

Sunday 21st February 2021

Painted the remaining interior so fit out can continue. Interior colour is the same as outside “Nardo Grey”

View on Tumblr

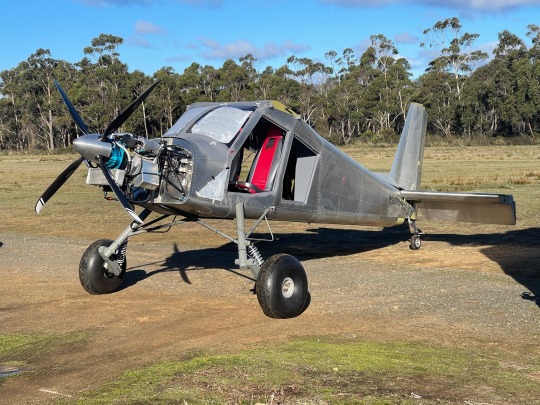

Wheels are on

Sunday 31st January 2021

Wheels are on and ready to roll!!!!

View on Tumblr

Saturday 16th January 2021

First engine run, super smooth and quiet.

View on Tumblr

Propellor Mounted

Saturday 16th January 2021

Our 4 bladed #airmaster propellor has arrived. Today we installed the hub and the slip ring bracket and sensor.

View on Tumblr

Radiator On

Tuesday 8th December 2020

Installed the radiator, oil cooler next

View on Tumblr

Wiring Started

Tuesday 8th December 2020

Installed the majority of the wiring today.

View on Tumblr

Brake System

Sunday 29th November 2020

Plumbed the brake lines today into the parking brake

View on Tumblr

Panel Fitout

Saturday 7th November 2020

Panel Fitout

Completed the panel face fitout. Now for all the behind the scenes wiring

View on Tumblr

Joystick Wiring

Saturday 7th November 2020

Extended the wires and fitted the joystick handle.

View on Tumblr

Pilots Door Mounted

Monday 2nd November 2020

Pilots door perspex on with handle

View on Tumblr
